3Pcs 8*4 Level Indicator Kit SMD Soldering Practice Board Audio Spectrum Indicator

Product Code: 5741019
Availability: In Stock

$23.99
Ex Tax: $23.99

Qty

Add to wishlist Add to compare

Product Description

Feature:

Model: ASD-84S

Working voltage: DC5V

Standby current: ≤ 5mA

Working current: ≤35mA

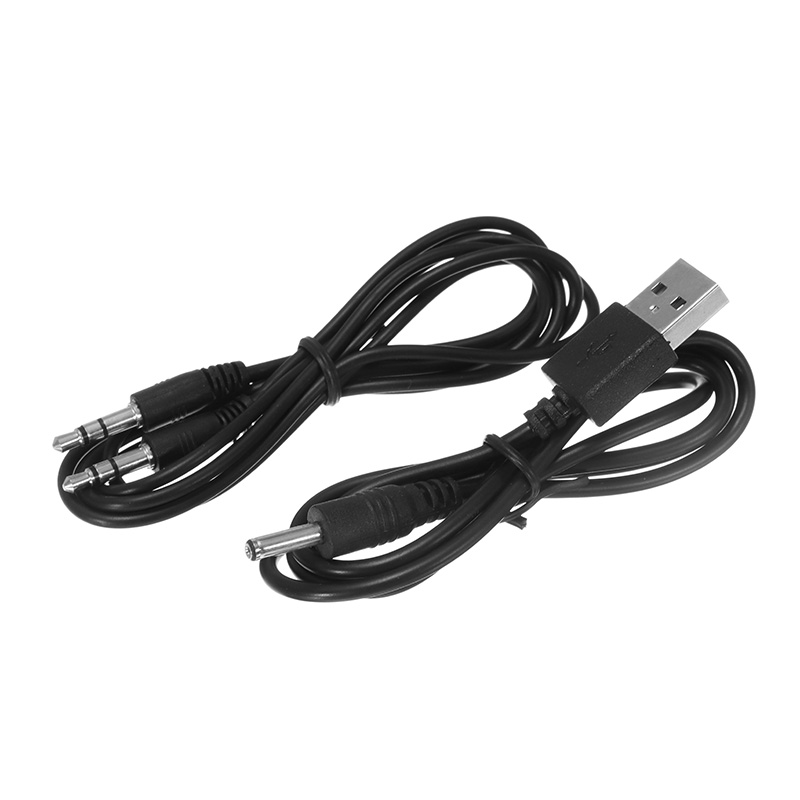

Signal input method: 3.5mm audio cable

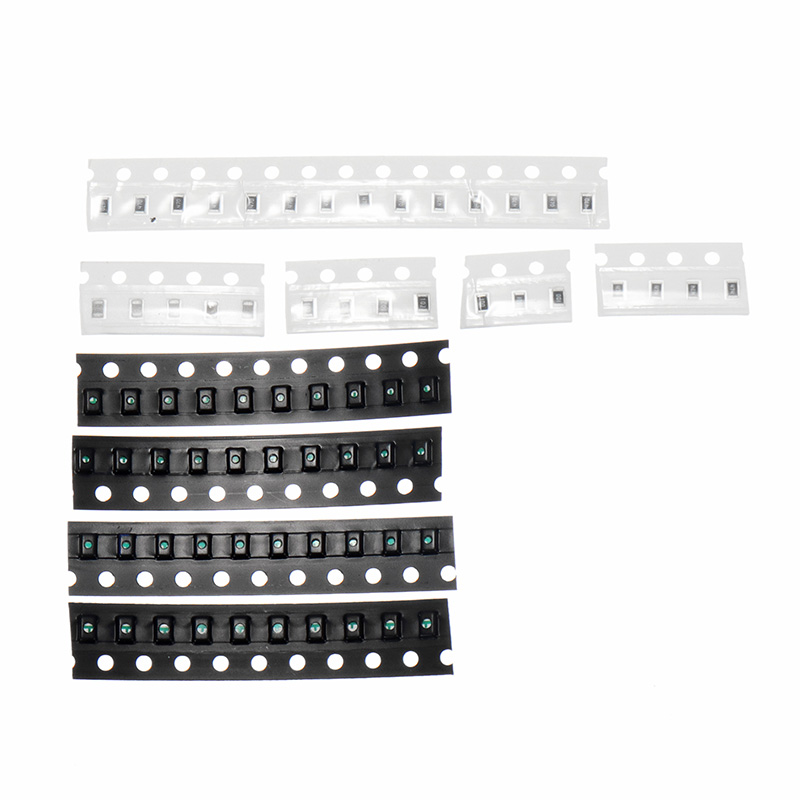

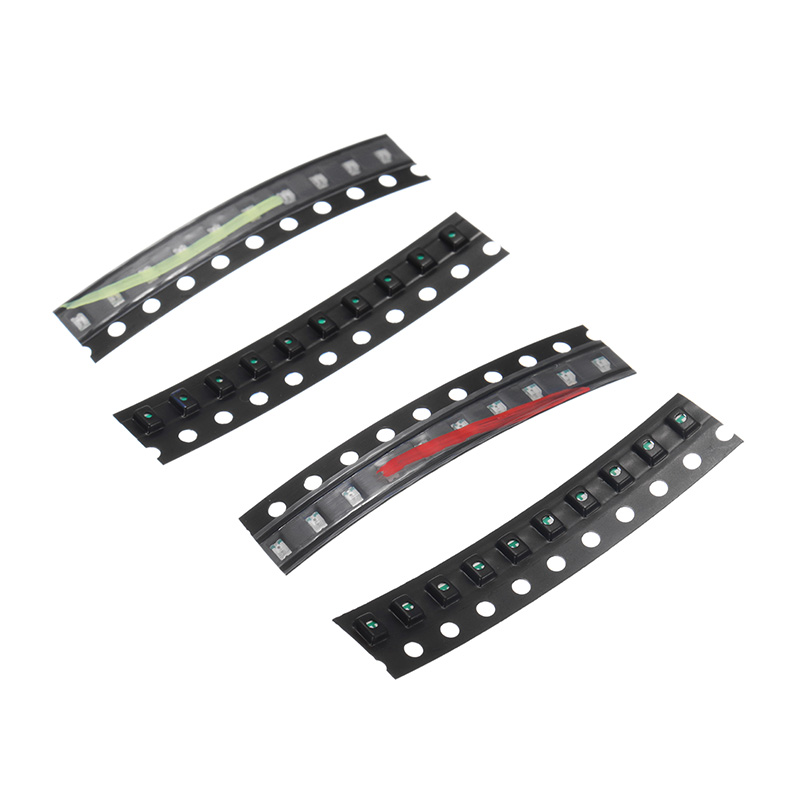

LED color: 0805 red, green, blue, yellow

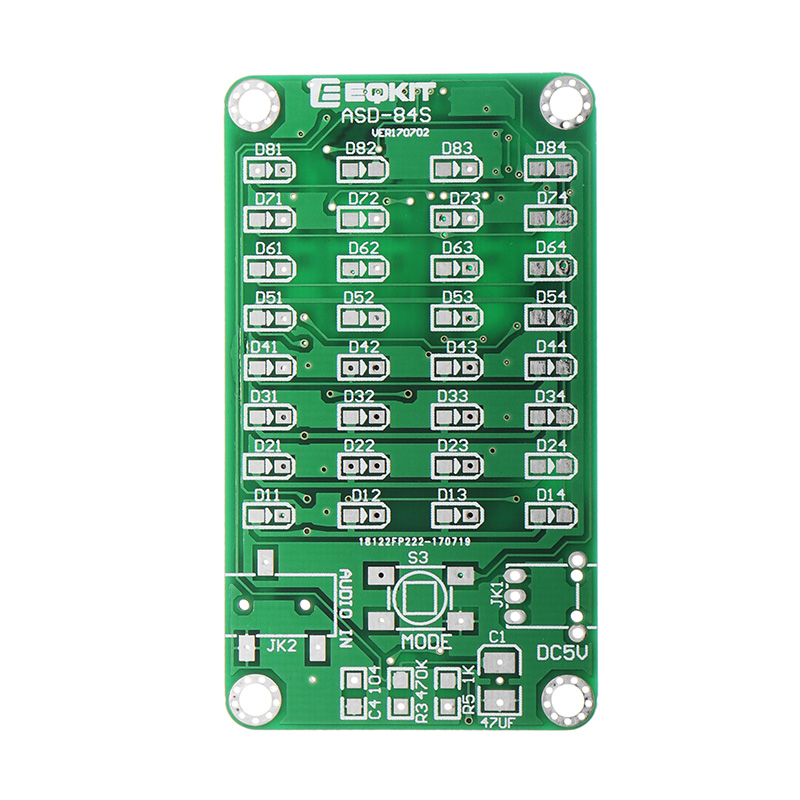

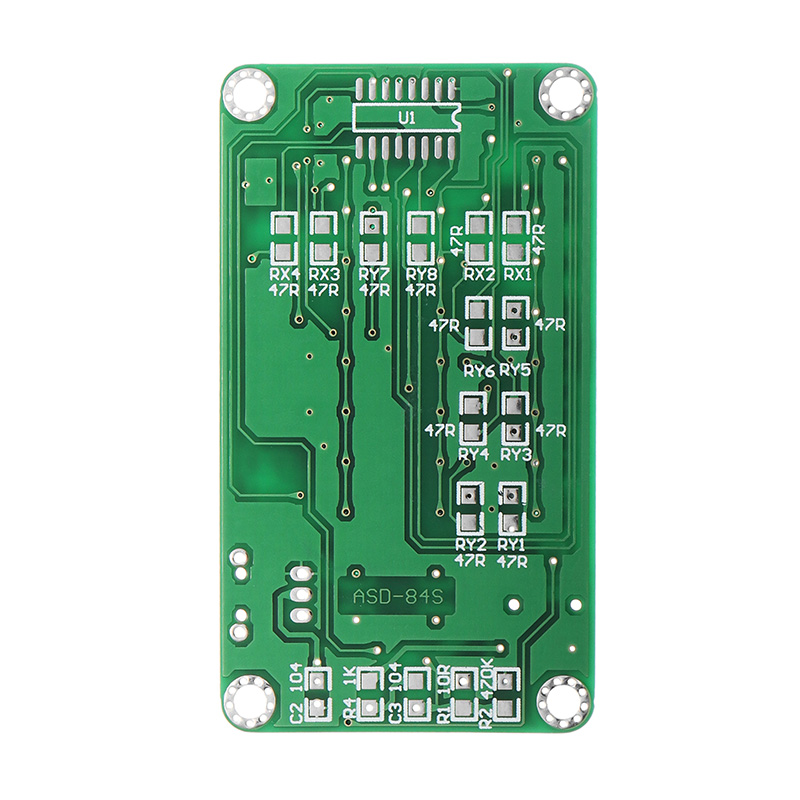

PCB size: 64.2mm x 36.5mm

PCB mounting hole: 3mm

PCB mounting hole spacing: 58.1 x 30.5mm

Note: When installing the LED, please keep the same line in the same color.

Button method	Operating mode	Screen display	Function setting Description	Default setting
Short press	Fast flash mode	3	Display refresh very fast, very dynamic	2
	Medium speed mode	2	Display refresh is relatively fast, strong sense of rhythm
	Low speed mode	1	Display refresh rate is relatively slow, the visual feel good
Long press	High sensitivity	H	Able to detect weaker signals	B
	Medium sensitivity	B	Able adapt to most signals
	Low sensitivity	L	Can filter weak interference signal
Note: Hold on the MODE button, and then turn on the power to enter the test mode, test mode can detect each LED is good or bad.

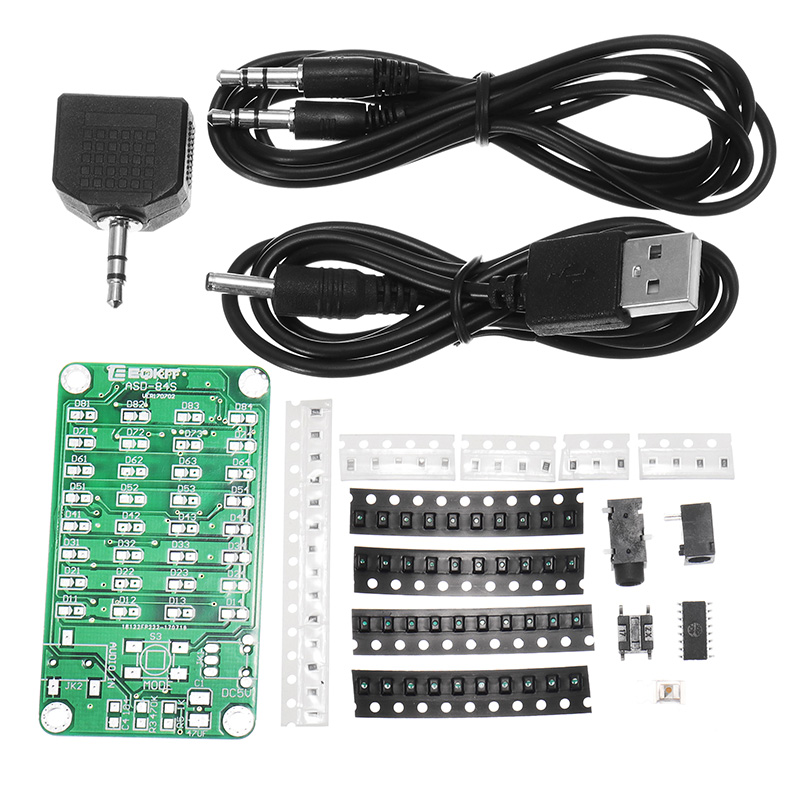

Package includes:

3 x 8*4 Level Indicator Kit
